The garage layout planner is a free online tool for designing your garage before you build or reorganise. Drag and drop cars, workbenches and shelving, check clearances to scale, and export your plan — completely free, no download required.
Enter your garage dimensions in feet or metres to create an accurate to-scale floor plan.
Drag cars, a workbench, shelving and cabinets from the library into your garage.
Move, rotate and resize items until your layout works. Snap to walls for precision.
Download your plan or share a link directly with your builder, contractor or household.
No steep learning curve. No subscription. Just a fast, accurate garage layout planner that lets you get on with designing.
Place cars, workbenches, shelving units and storage cabinets with a single click. Snap to walls and to each other automatically.
Set your exact garage size in feet or metres and every item is drawn to scale. See instantly what fits before you park or build a thing.
Open the garage planner and start designing immediately. Nothing to install, no account to create, no credit card required.
Download your garage layout as an image to share with a builder, contractor, or the rest of the household. No reformatting needed.
Cars, SUVs, workbenches, shelving, wall cabinets, bikes and bins — sized to real-world footprints so what you place is what fits.
Every item can be rotated, resized and labelled. Test a dozen garage layout ideas in minutes without moving a single box in the real room.
Planning in feet and inches? The planner has a built-in ft / m toggle, so you can draw your garage in US units from the first wall.
Garages are more standardised than most rooms. A single-car garage is typically 12 × 20 feet, with a tight practical minimum of about 10 × 18. A two-car garage runs 20 × 20 feet, and a comfortable one is 24 × 24 — the extra room lets both car doors open and lets you walk between the vehicles. Sketch the shell at the standard size, drop your cars in, then plan the workbench and shelving around them.
The size that fits the car is not always the size that fits the life around it — plan for the doors, not just the bodywork.
| Single-car garage | 12' × 20' |
| Tight single-car minimum | 10' × 18' |
| Two-car garage | 20' × 20' |
| Larger two-car garage | 24' × 24' |
The car sets the footprint; the bench, shelving and walkways decide whether the rest is usable.
| Average car footprint | ~6' × 15' |
| Workbench depth | ~24" |
| Storage shelving depth | 18"–24" |
| Walkway around a parked car | ~3' |
A garage that fits the car on paper can still be a squeeze in person — the gaps around the vehicle decide whether it is pleasant to use.
Leave about 3 feet of clear space around a parked car so you can open the doors, load the boot and walk past without turning sideways. In a two-car garage, protect the strip down the middle above everything else.

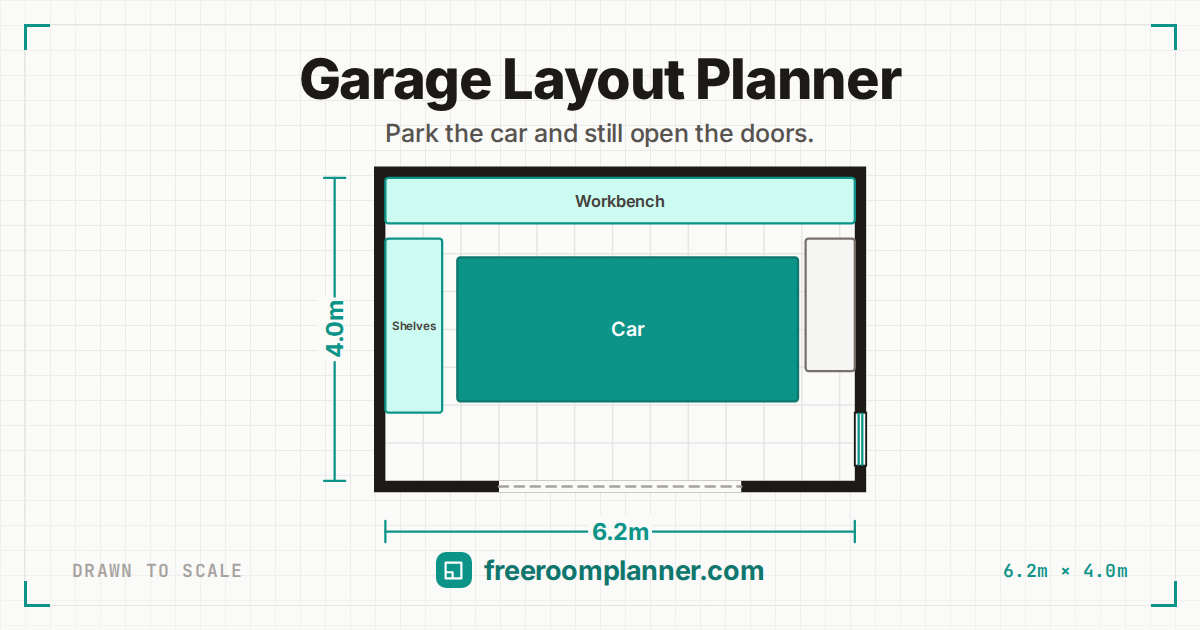

A workbench about 24 inches deep gives you room to work without stealing a parking bay. Run it along the back wall, in front of the car’s nose, where the space is otherwise dead.
Storage shelving is typically 18 to 24 inches deep. Line it up the side walls and go tall — a garage’s best storage is vertical, above the height of a car door.
A garage is two rooms fighting for one floor: parking and everything else. Place the car first — the least flexible thing in the room — then fit storage and a workshop into the space it leaves. Try a few arrangements before you drill a single bracket.
Dedicate the back wall — the strip in front of the car’s nose — to a workbench about 24 inches deep, with a pegboard or tool wall above it. That band of floor is unreachable by the car anyway, so it costs you nothing in parking. Keep a clear standing zone of a couple of feet in front of the bench, and you have a proper workshop that folds away the moment the car pulls in.
The single biggest win in most garages is going vertical. Line the side walls with 18–24 inch shelving and wall cabinets, mounted above car-door height so nothing gets clipped when the doors swing open. Bikes, ladders and seasonal boxes come off the floor, the car fits again, and the whole space reads as bigger. Map the shelf depth to scale so it never bites into the walkway you need alongside the car.
The clearance that catches people out is not the car’s length — it is the door swing. Open car doors need room on both sides, so keep roughly 3 feet clear alongside each vehicle and protect the centre aisle in a two-car garage. Check the up-and-over or roller door’s travel too, and make sure the internal side door into the house has space to open without hitting a shelf.
If you only park one car but the garage is built for two, split it deliberately: one bay for the vehicle, the other for a gym, workshop or storage run. Mark the parking bay at ~6 × 15 feet so the working half never creeps into it, and everything on the free side stays sized to move aside when the second car comes in.
